Zoning App

Een korte intro op de detail pagina, met hier onder de optie voor meerdere detail pagina's

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Iam id ipsum absurdum, maximum malum neglegi. Quae autem natura suae primae institutionis oblita est?

VRA Zoning

Wageningen Plant Research (WUR)

Contact: Fedde Sijbrandij

E-mail: fedde.sijbrandij@wur.nl

Website: farmmaps.eu/en/map

Link to appstore: farmmaps.eu/en/editor/plan

Price: €20 ex BTW

With the Zoning app you can divide a data layer of your field into zones and determine per zone what needs to be done. Use satellite images, height maps, or import your own data to repository of data on FarmMaps. Files can be uploaded as a CSV, geojson, shape (zip) or tiff file. This data can be used in the VRA Calculator app. Where necessary, the data is interpolated to create a plot-covering map layer.

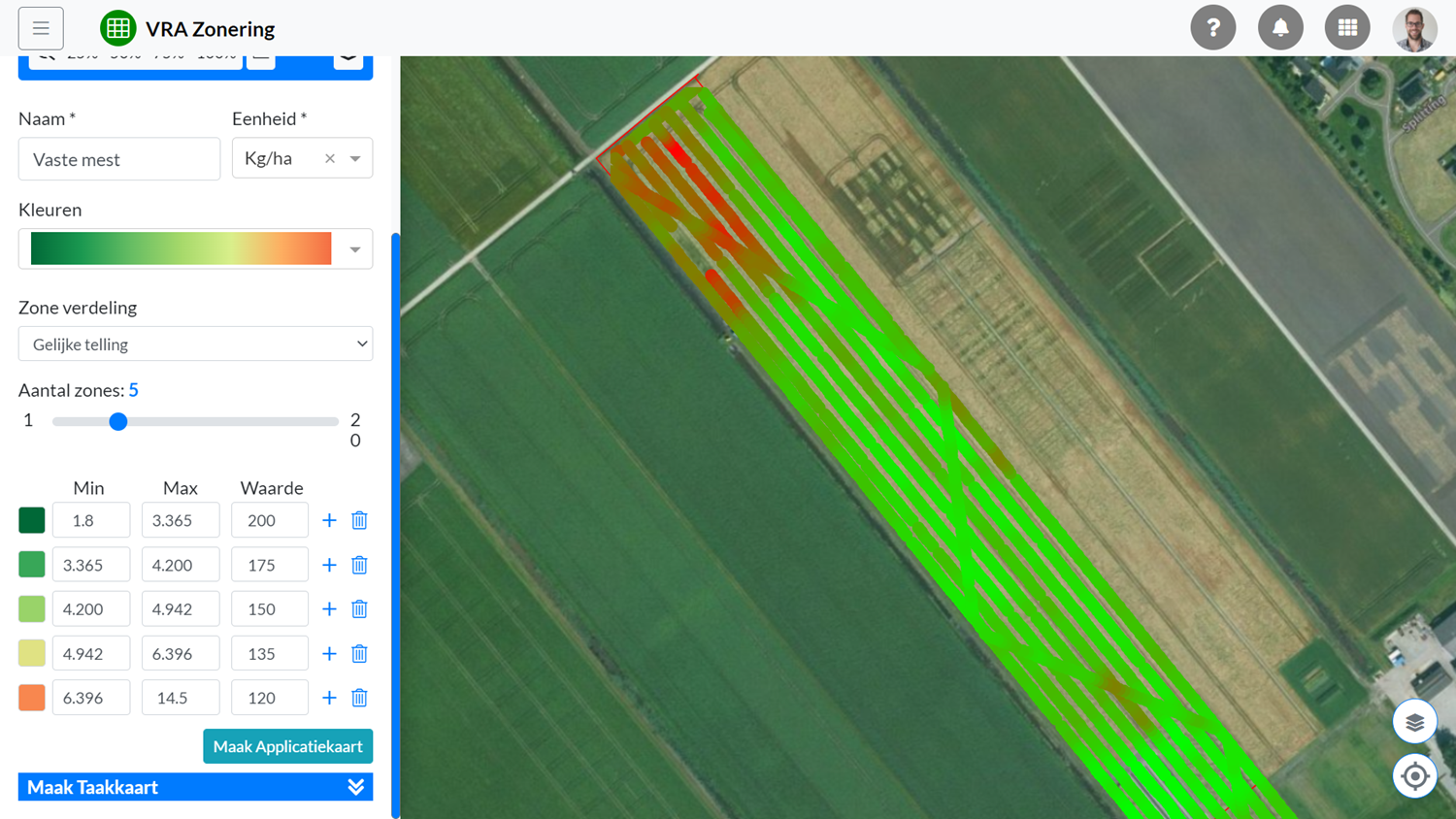

Chose the number of zones and the distribution yourself. You can distribute the zones using different techniques, like equal interval and equal count.

You can still edit the zone limits later or assign a value or a rate to each zone. This can be a zone number, or an amount of fertilizer. Based on this data, the Zoning app creates an application map and converts it into a machine-ready task map.

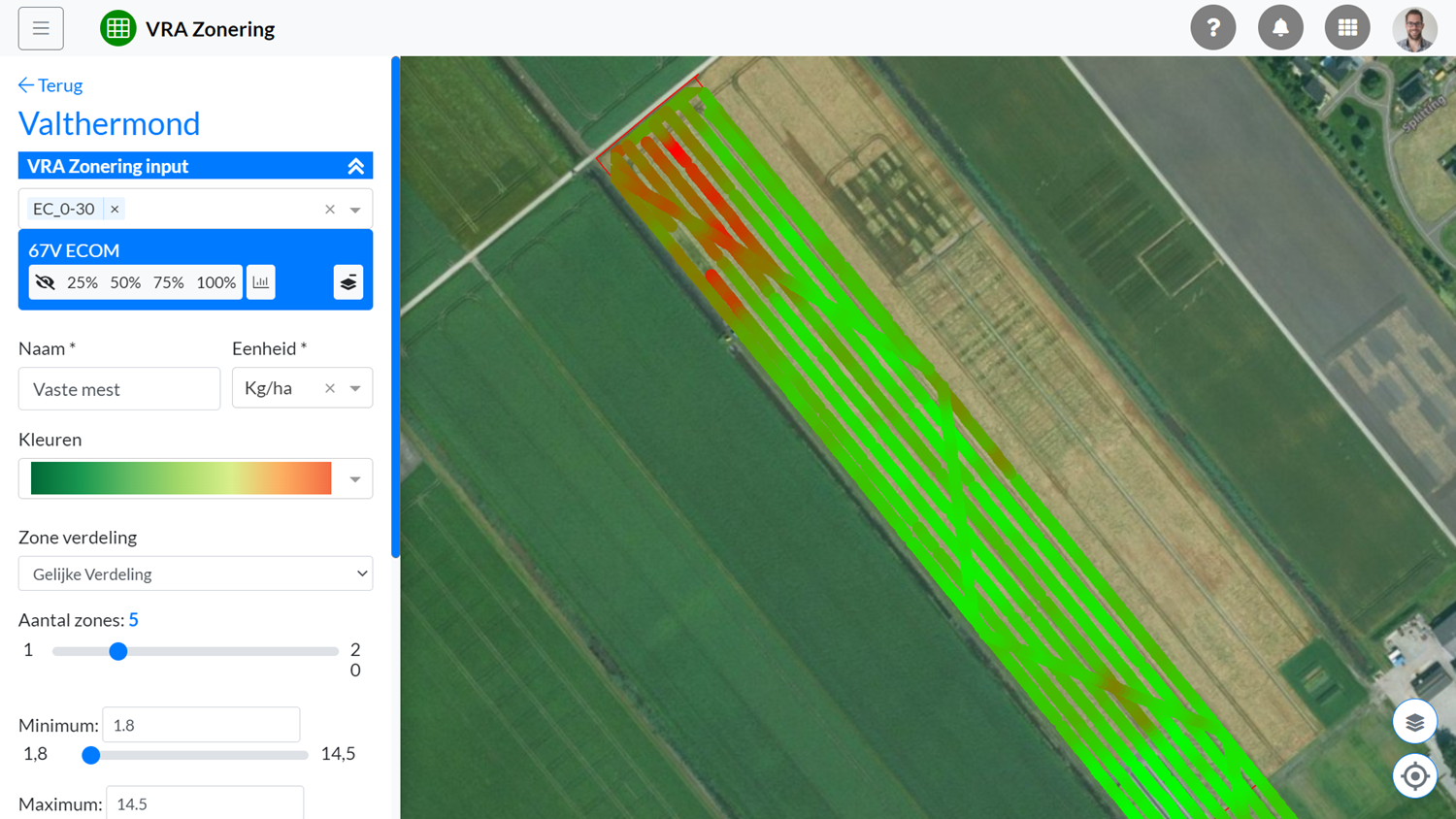

In the Zoning-app, you choose:

  • The data layer on which you want to base the zoning
  • The number and distribution of zones

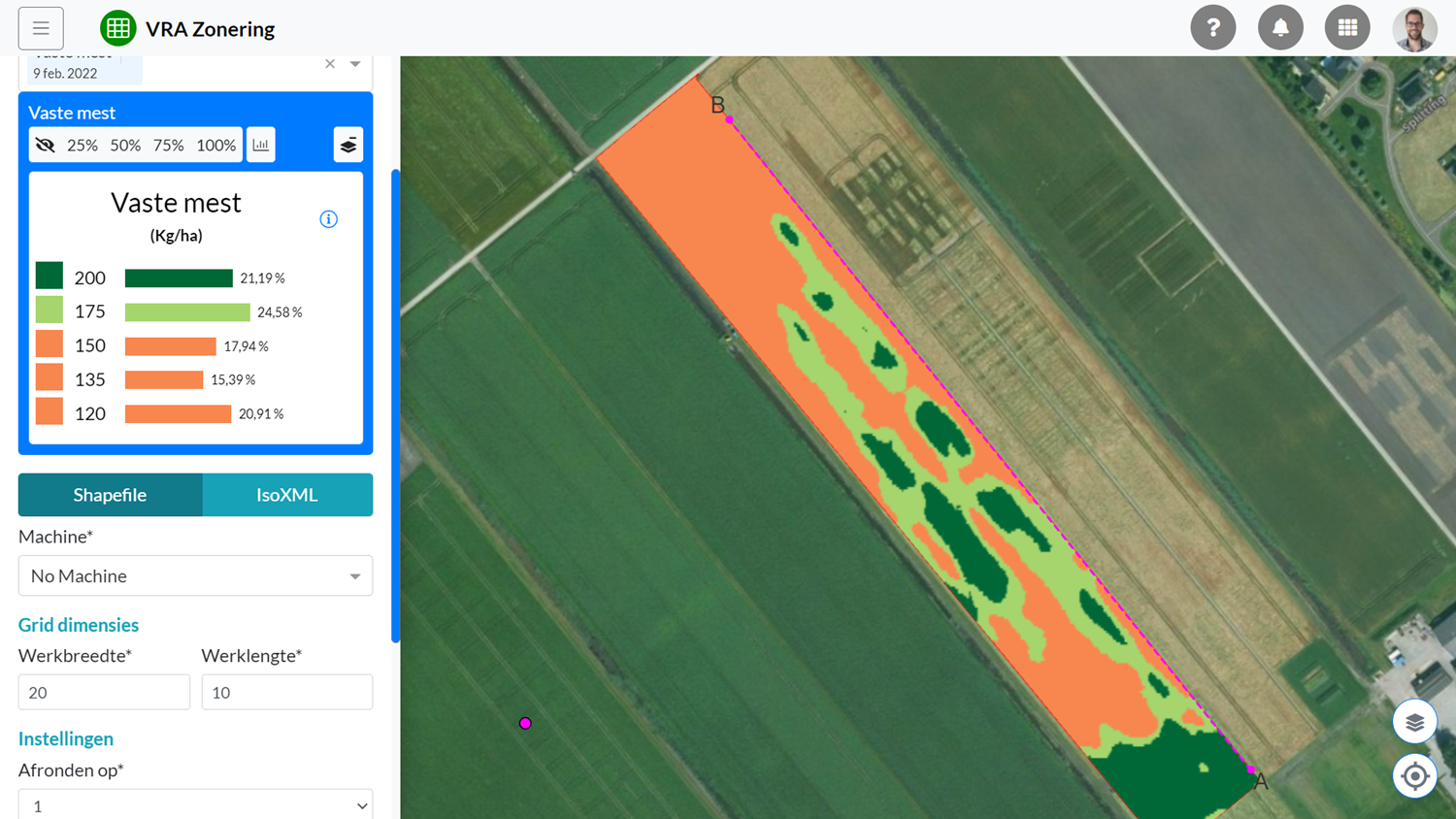

  • The value or rate per zone

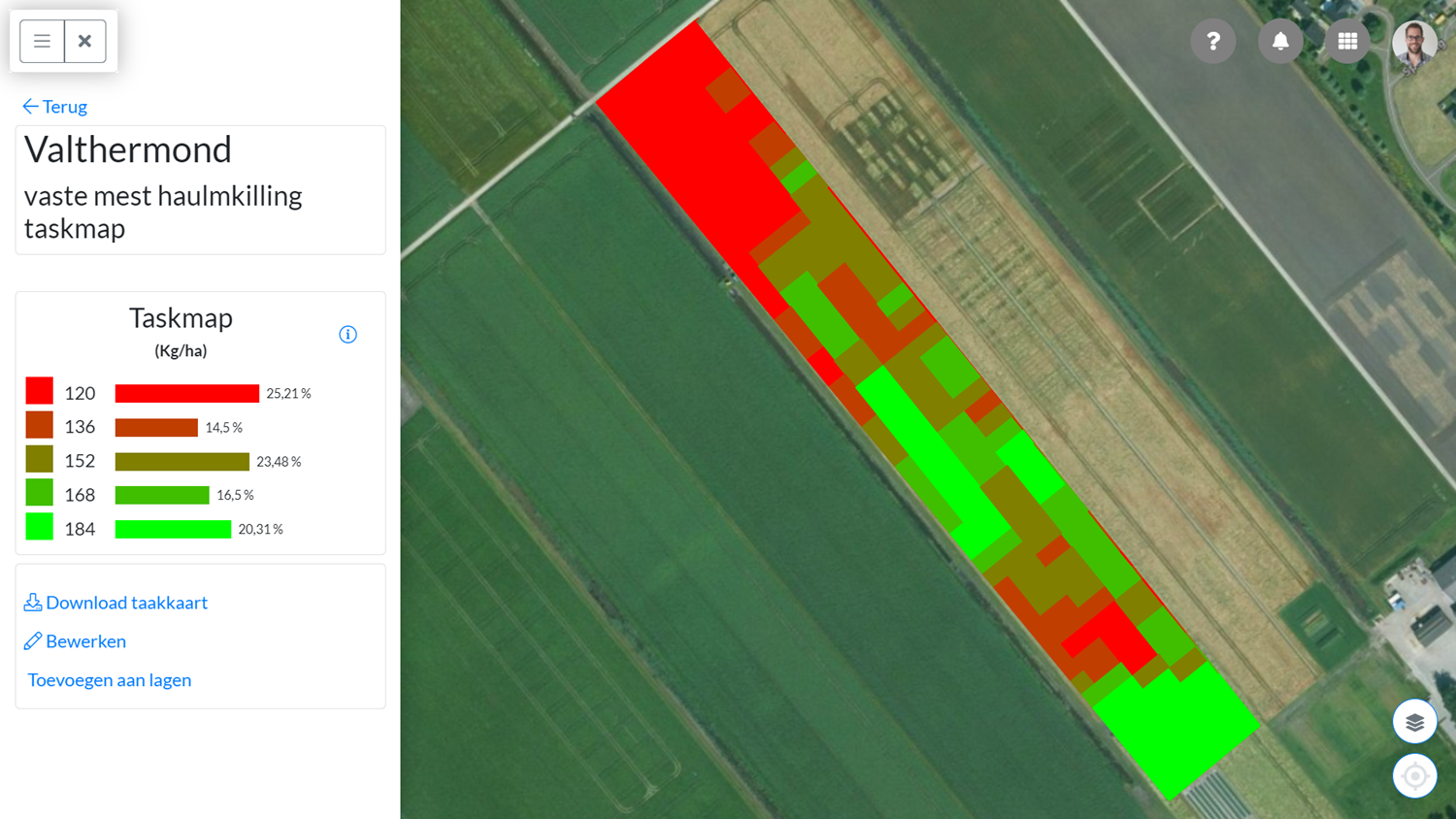

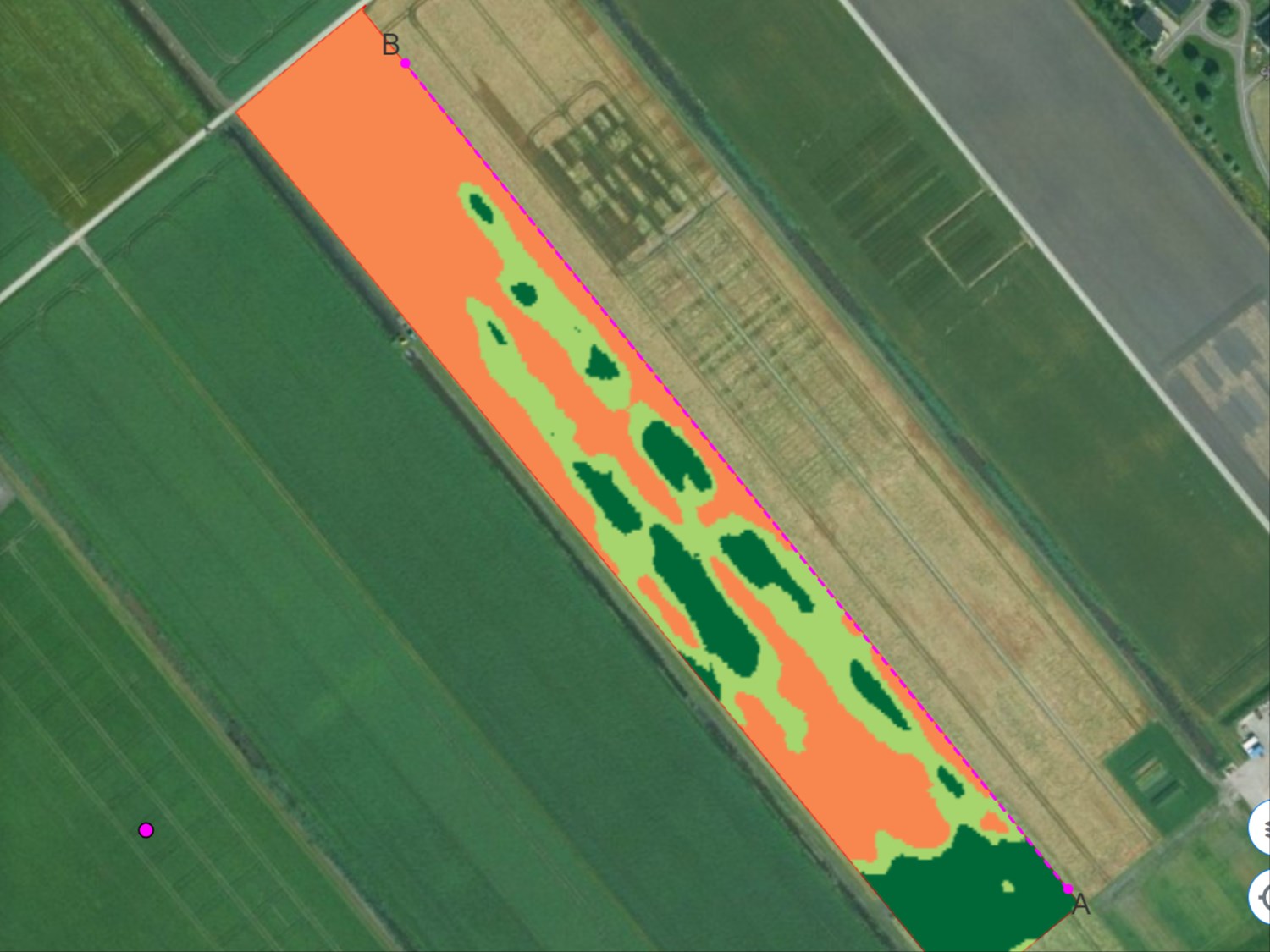

After going through these steps, the application map with zones will appear. The map is then converted into a task map that is tailored to the dimensions and properties of your machine.

You can download this task map as a Shapefile or an ISO-XML file, and place it in the terminal that steers the machine. If you also use the Agrirouter app you can send the file inmediately to the machine and receive as-applied maps back.

Extra info op dezelfde pagina

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Iam id ipsum absurdum, maximum malum neglegi. Quae autem natura suae primae institutionis oblita est? Duo Reges: constructio interrete. Iam quae corporis sunt, ea nec auctoritatem cum animi partibus, comparandam et cognitionem habent faciliorem. Indicant pueri, in quibus ut in speculis natura cernitur. Negat esse eam, inquit, propter se expetendam.

Dicam, inquam, et quidem discendi causa magis, quam quo te aut Epicurum reprehensum velim. Quae sunt igitur communia vobis cum antiquis, iis sic utamur quasi concessis; Atqui haec patefactio quasi rerum opertarum, cum quid quidque sit aperitur, definitio est. Ego vero isti, inquam, permitto. Philosophi autem in suis lectulis plerumque moriuntur. Cuius ad naturam apta ratio vera illa et summa lex a philosophis dicitur. Eodem modo is enim tibi nemo dabit, quod, expetendum sit, id esse laudabile. At ille non pertimuit saneque fidenter: Istis quidem ipsis verbis, inquit;

Claudii libidini, qui tum erat summo ne imperio, dederetur. Quid de Platone aut de Democrito loquar? Quod ea non occurrentia fingunt, vincunt Aristonem; Plane idem, inquit, et maxima quidem, qua fieri nulla maior potest. Quid ei reliquisti, nisi te, quoquo modo loqueretur, intellegere, quid diceret? Etenim nec iustitia nec amicitia esse omnino poterunt, nisi ipsae per se expetuntur. Id enim volumus, id contendimus, ut officii fructus sit ipsum officium.

Contact us for questions about the zoning app
